PRODUCT DETAILS
xTPC offers our Stage 2 hybrid upgrade with an upgraded TURBINE wheel as well as the larger billet compressor wheel unlike other STG 2 options on the market
Be aware when shopping for these upgrades as many shops do not actually upgrade the turbine wheels. These are hard to machine as they are a 1-piece cast manifold and can be cumbersome to mount on the CNC machines.
-Upgraded triple oil feed 360* thrust bearing.

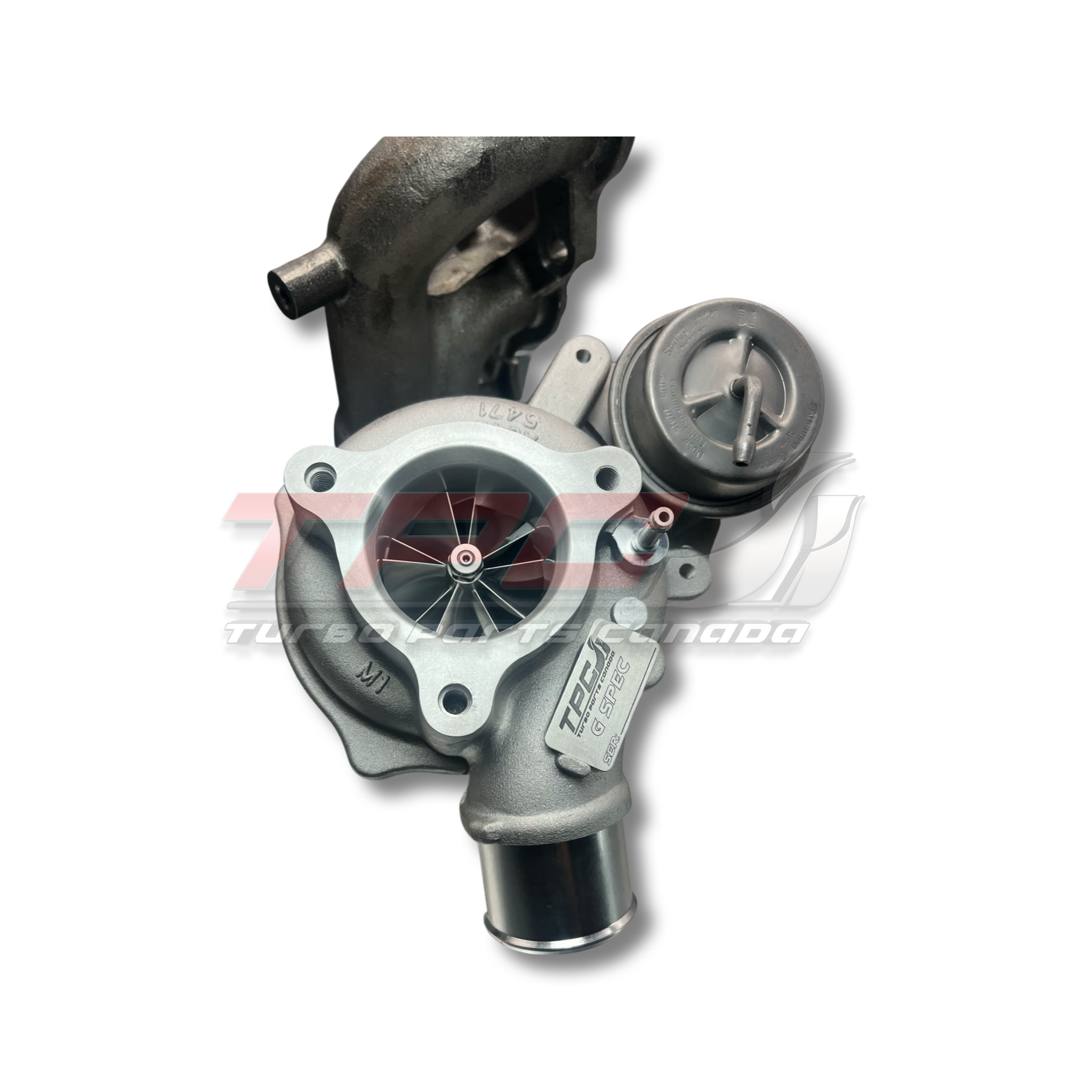

-5+5 Blade 50mm compressor wheel

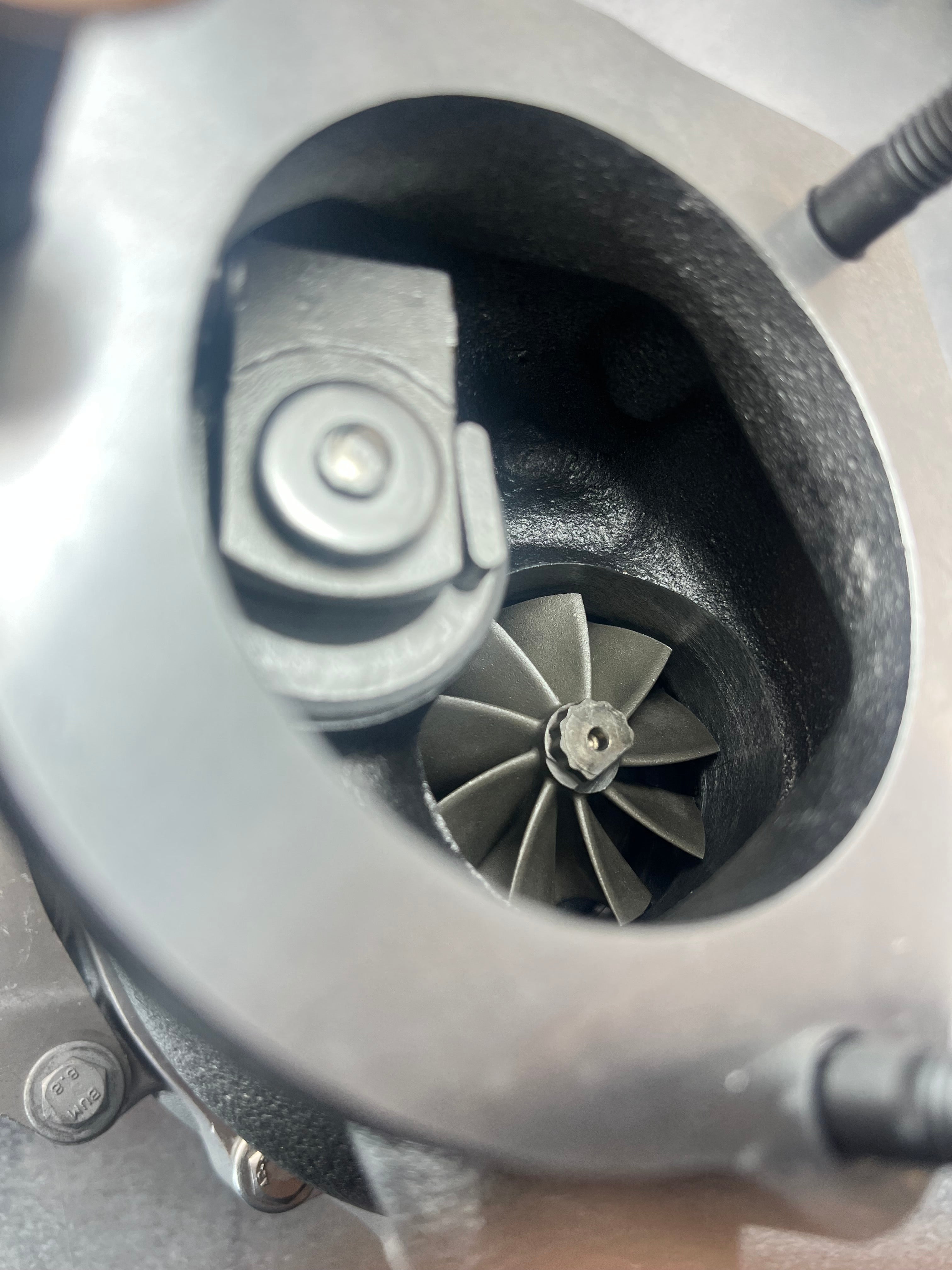

-46mm Quick Spool 9 blade turbine wheel
-Step gap piston ring for better oil retention
-In house CNC machining of both turbine and compressor housings
- Low and high speed VSR balancing done in house
Optional Exhaust manifold porting available.
When ordering please select what style of wastegate actuator your car has, if you are unsure please contact us before ordering.
***ELECTRONIC ACTUATOR NOT INCLUDED IN EWG MODEL***
Contact N75motorsports.ca for your tune packages.
Don't be fooled by shops that claim more WHP than this graph. What you see is an average car with realistic power rating to the WHEELS, not Crank power. We simply cannot put bigger wheels in these housings.
|
OEM Part Number |
28231-2B700 PNEUMATIC ACTUATOR 28231-2B790 ELECTRONIC ACTUATOR |
|
Compressor Wheel |
50MM 5+5 BILLET |
|
Turbine Wheel |
46MM 9 BLADE HIGH FLOW |
|
Bearing Type Options |
UPGRADED JOURNAL BEARING |
|
Engine |
1.6L GAMMA T-GDI |
|
Turbocharger Upgrades |
UPGRADED BILLET COMPRESSOR WHEEL, HIGH FLOW TURBINE WHEEL AND UPGRADED BEARING SYSTEM |
|
Potential Power |
300+WHP WITH SUPPORTING MODS |
|
Install Hardware Included |
NO |
|
VSR Balanced |
YES |
|
Applications |
28231-2B700: 13-16 Veloster 1.6T
28231-2B790: 20-22 KIA Soul 1.6T 20-24 KIA Forte GT 1.6T 17-20 Veloster 1.6T |
|
Turbine Housings |
OEM |
Professionally remanufactured with quality made parts, high speed balancing, premium packaging & customer support.
REFUNDABLE CORE CHARGE
Customers have 60 days to return their core for applicable refund. Refund subject to condition of core(s). Refunds are issued within 5 business days after receiving.
Please include our TPC CORE RETURN FORM
If you don't see what you're looking for, please give us a call or send us an email! If OUT OF STOCK, please call or click the "NOTIFY ME" button to check on availability.
Toll Free # 1-866-552-3477 EXT 1
Local # 1-613-868-6801
