PRODUCT DETAILS

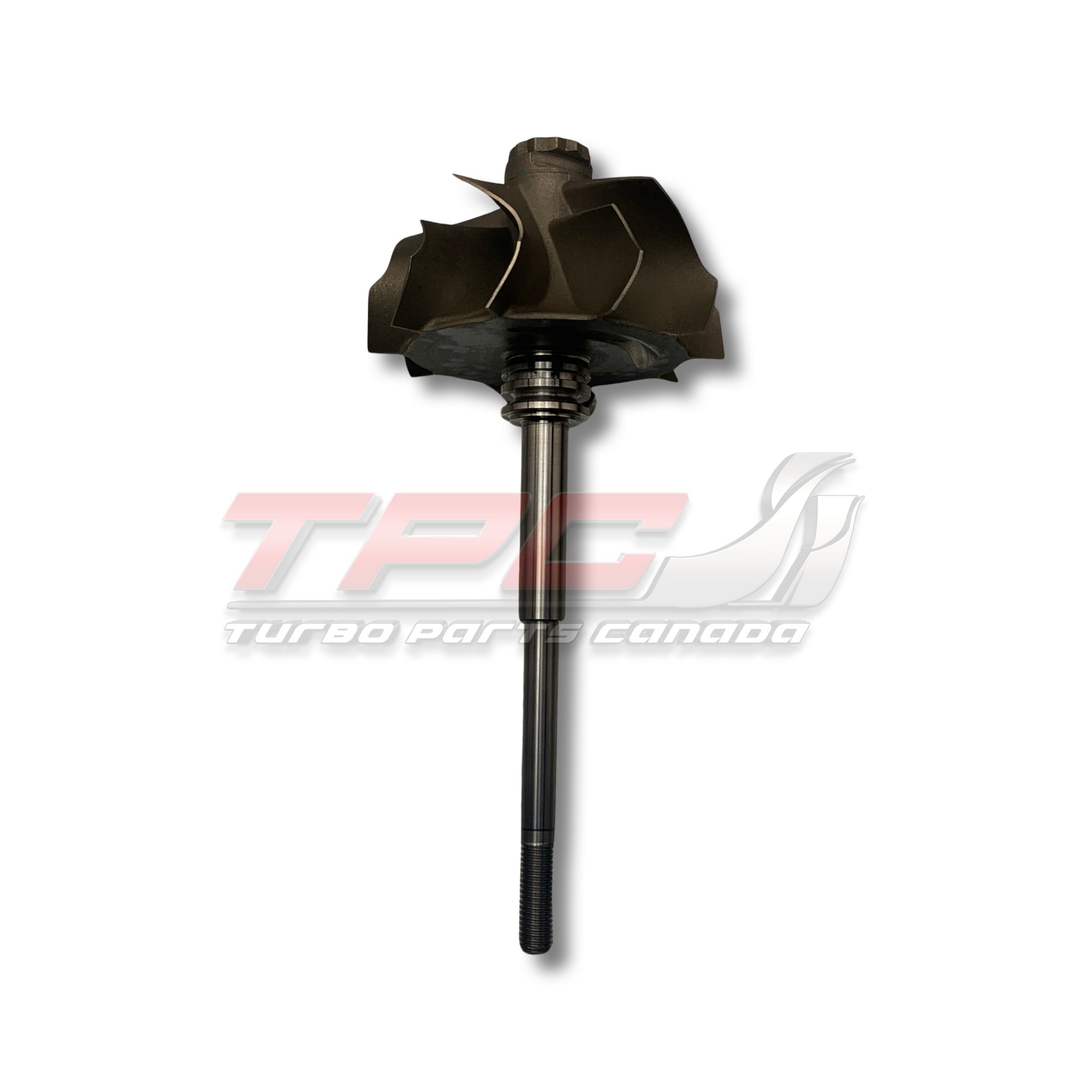

xTPC is proud to introduce to you a drop in 5+5 turbine wheel for any of your Mitsubishi (MHI) forward rotation turbos with a TD06H turbine wheel.

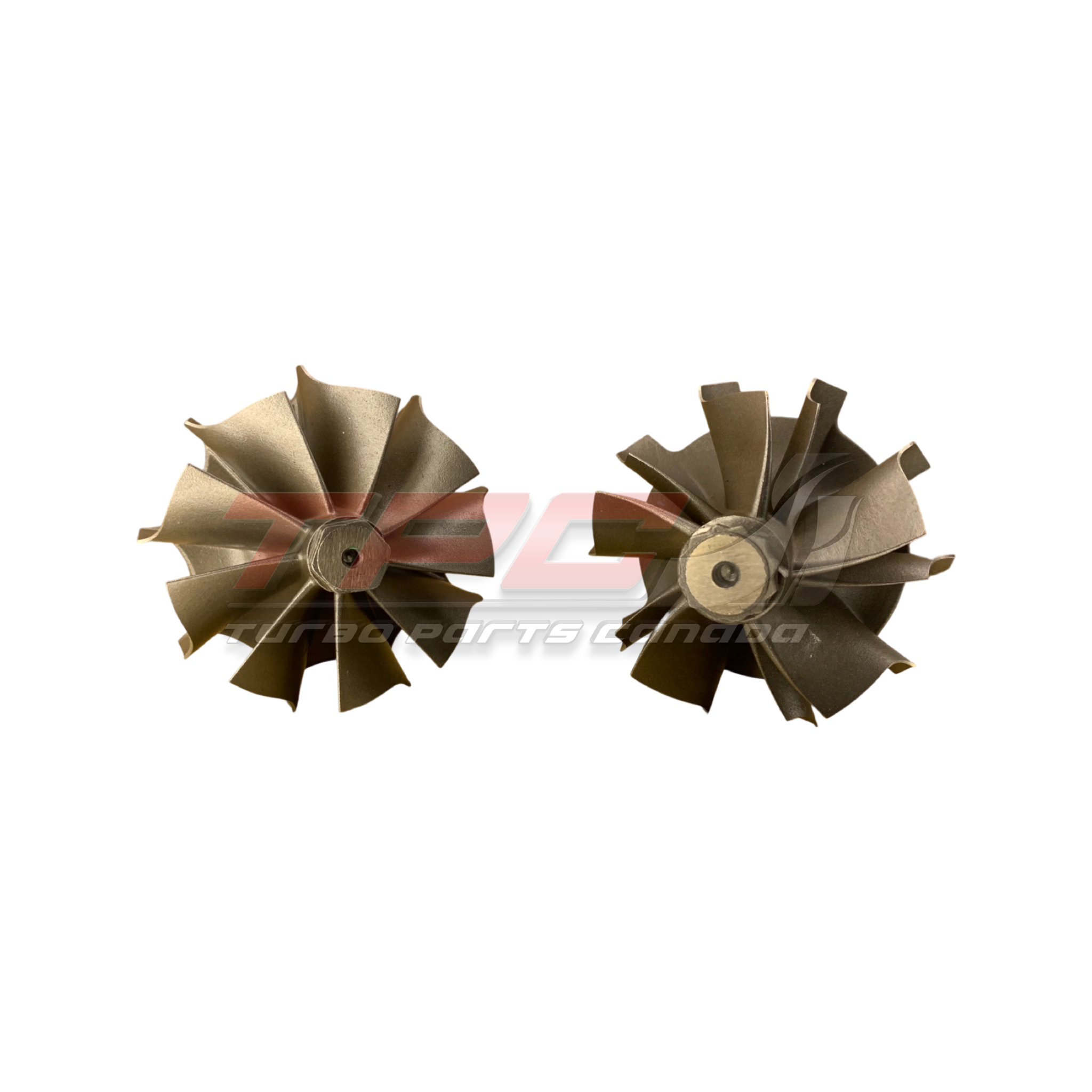

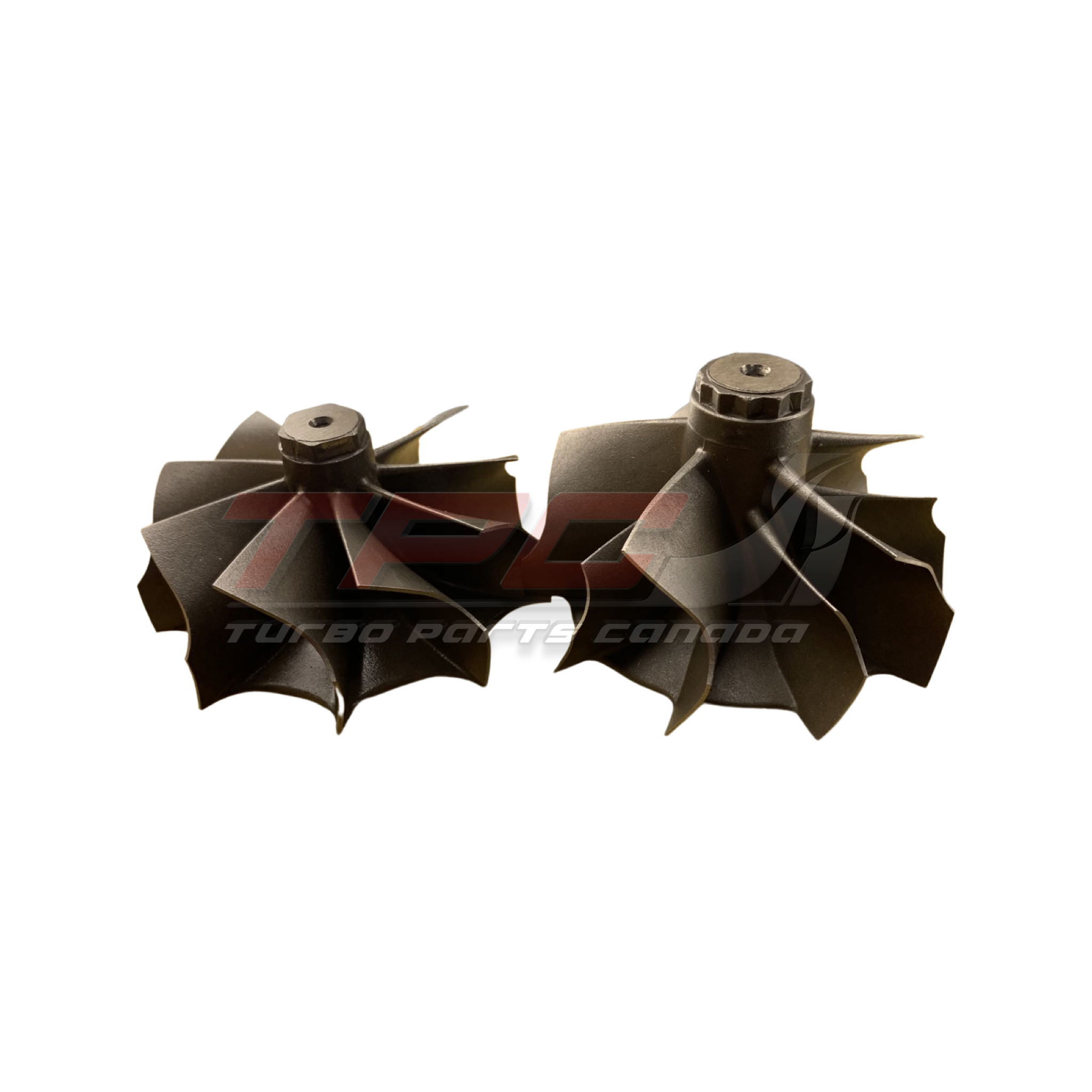

This new turbine wheel style design is to help release back pressure without sacrificing spool. In other words these act like a well designed clipped turbine wheel.
Many popular turbos such as Forced Performance and Blouch utilize the TD06H turbines in their FP Red, FP Black which come in a Bolt On application for Subaru, Mitsubishi, Nissan etc.
All TPC turbine wheels are made from 713C Inconel, professionally balanced and come with the appropriate shaft nut. Custom wheels are final sale unless approved by TPC staff for special circumstances. VSR Balancing is strongly recommended after making the assembly.
(2D Drawings provided upon request after purchase)
| Wheel Specs |
| Wheel Rotation |
Forward |
| Inducer Diameter A |
67.3 mm |
| Exducer Diameter B |
58.9 mm |
| Bearing Shaft Diameter D | 9.00 mm |
| Quill Shaft Diameter E | 6.50 mm |
| Bearing Shaft Length G | 37 mm |
| Quill Shaft Length F | 57.5 mm |

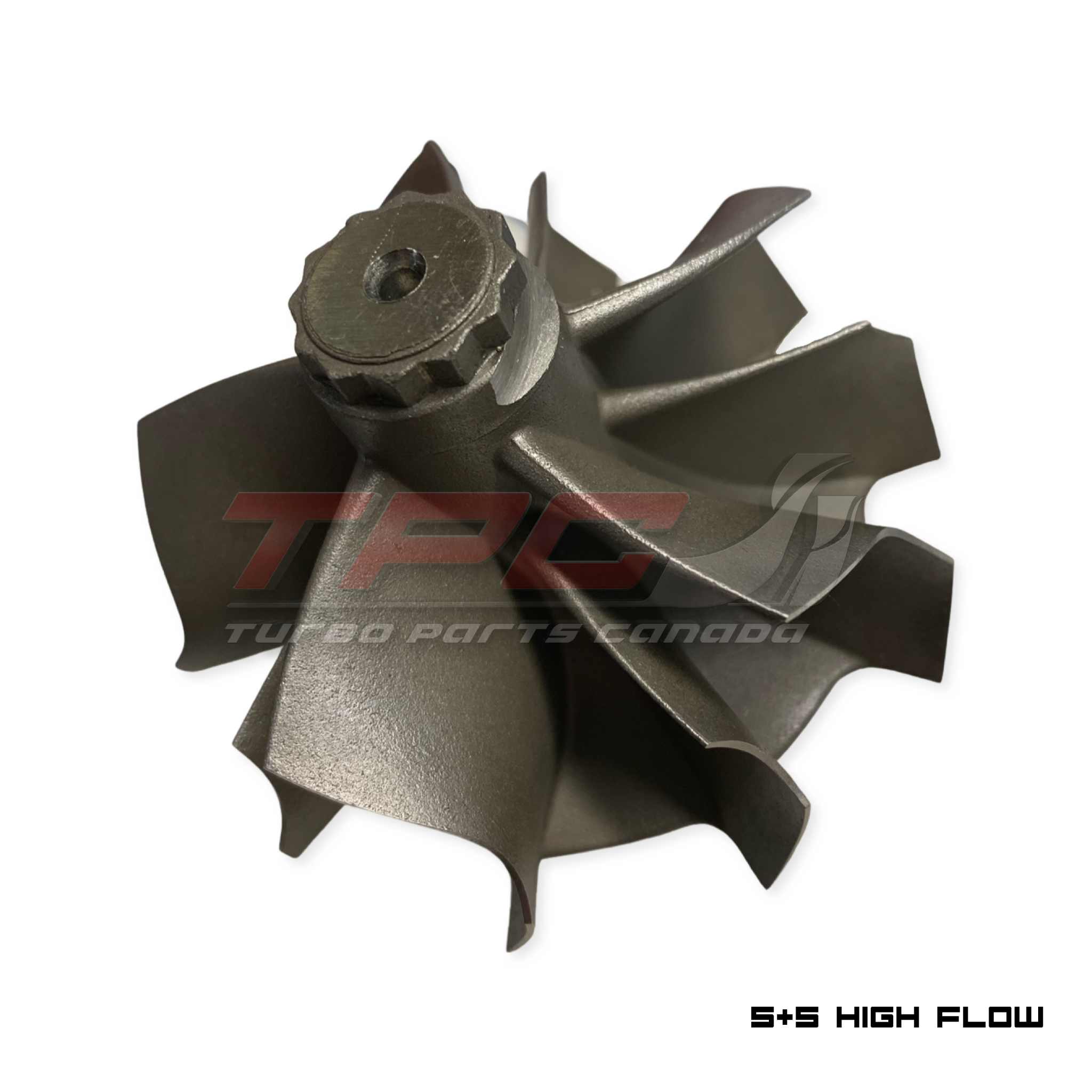

| Blade Design | 5+5 (10) |
| CNC Machining Required |
NO for TD06H (Drop-In) |
| Application: | This turbine wheel fits any MHI turbine housings with the TD06H specs. Many applications in Subaru, Mitsubishi and Nissan. |
TPC offers professional in-house machining services if you require it. Contact us for any additional information or if you don't see what you're looking for.
Toll Free # 1-866-552-3477 EXT 1
Local # 1-613-868-6801
